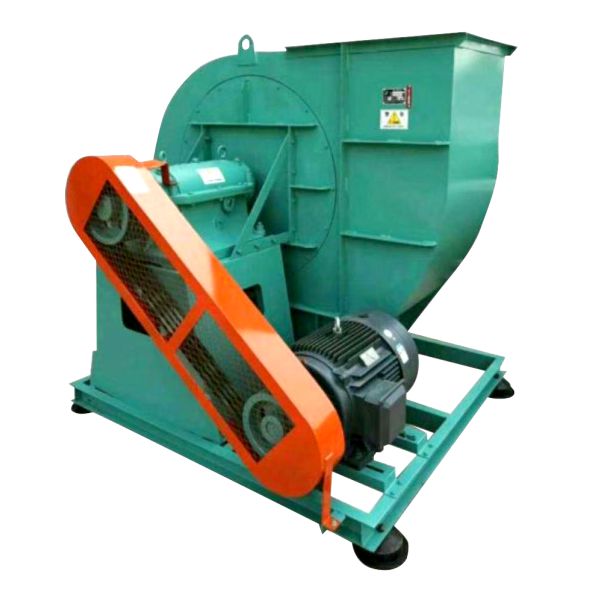

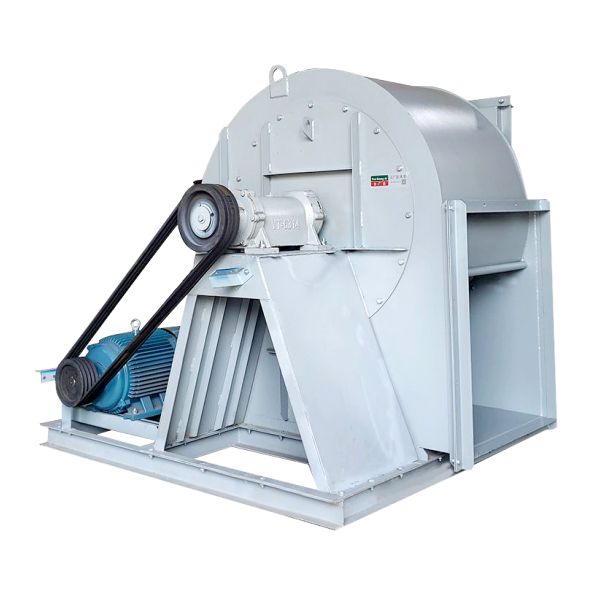

4-2X79-E系列雙進風離心風機
4-2X79-E系列雙進風離心風機
可用于一般工廠及大型建筑物、空調機組、高層建筑的室內通風換氣?？奢斎霘怏w，也可以輸出氣體，輸送氣體為空氣和其他不自然、對人體無害、無腐蝕氣體，輸送的介質溫度≤80℃，塵土及固體雜質≤150mg/m3。
Suitable for indoor ventilation in factory ,large-scale
building ,air condition unit,high-rise building
Can input the air ,also can output the air ,transmit
the air with temperature below 80℃ in the environment
where has not inflammable ,harmless ,and
Caustic air,the dust dust and solid impurity containing
Index is below 150mg/m3
電話：13802832448, 歡迎來電咨詢
產品詳情
|
型號 (No) |
功率 (W) |
轉速 (rpm) |
風量 (m3/h) |
風壓 (Pa) |
入風口尺寸 | 出風口尺寸 |
規格 (長寬高mm) |
總重量 (kg) |
葉輪重量 (kg) |
單價 (Yuan) |
| 5E | 2.2 | 1200 | 6380~11640 | 618~412 | ||||||
| 4 | 1350 | 7980~13340 | 774~480 | |||||||
| 5.5 | 1550 | 9620~15320 | 1010~647 | |||||||
| 7.5 | 1800 | 9850~17160 | 1382~941 | |||||||
| 11 | 2000 | 13600~18820 | 1607~1206 | |||||||
| 6E | 5.5 | 1200 | 15190~27000 | 882~588 | ||||||
| 11 | 1400 | 16760~29820 | 1215~814 | |||||||
| 11 | 1500 | 14000~27180 | 1392~990 | |||||||
| 15 | 1650 | 15570~30240 | 1676~1186 | |||||||
| 18.5 | 1800 | 16760~29820 | 1990~1362 | |||||||
| 7E | 7.5 | 900 | 14000~27180 | 627~473 | ||||||
| 11 | 1000 | 15570~30240 | 774~461 | |||||||
| 11 | 1120 | 17370~33840 | 970~549 | |||||||
| 15 | 1250 | 19470~37710 | 1206~716 | |||||||
| 30 | 1600 | 24930~48330 | 1970~1166 | |||||||
| 8E | 11 | 900 | 19360~37600 | 785~471 | ||||||
| 15 | 1000 | 21520~41680 | 971~579 | |||||||
| 22 | 1120 | 24080~46720 | 1226~697 | |||||||
| 30 | 1270 | 23760~52960 | 1570~932 | |||||||
| 9E | 11 | 740 | 22664~44019 | 671~403 | ||||||
| 15 | 800 | 24502~47588 | 784~471 | |||||||
| 18.5 | 910 | 27871~54131 | 1015~609 | |||||||
| 30 | 830 | 32465~63054 | 1059~726 | |||||||
| 37 | 940 | 35222~68407 | 1363~932 | |||||||
| 10E | 11 | 580 | 34320~56600 | 520~353 | ||||||
| 15 | 660 | 39000~64400 | 667~461 | |||||||
| 18.5 | 740 | 43800~72200 | 843~579 | |||||||
| 30 | 830 | 49100~81000 | 1059~726 | |||||||
| 37 | 940 | 55700~91800 | 1363~932 | |||||||
| 12E | 15 | 520 | 53300~87800 | 603~402 | ||||||
| 22 | 580 | 59400~97800 | 755~510 | |||||||
| 37 | 680 | 69700~114800 | 1040~696 | |||||||
| 55 | 740 | 75800~124800 | 1216~824 |
