產品展示
PRODUCT

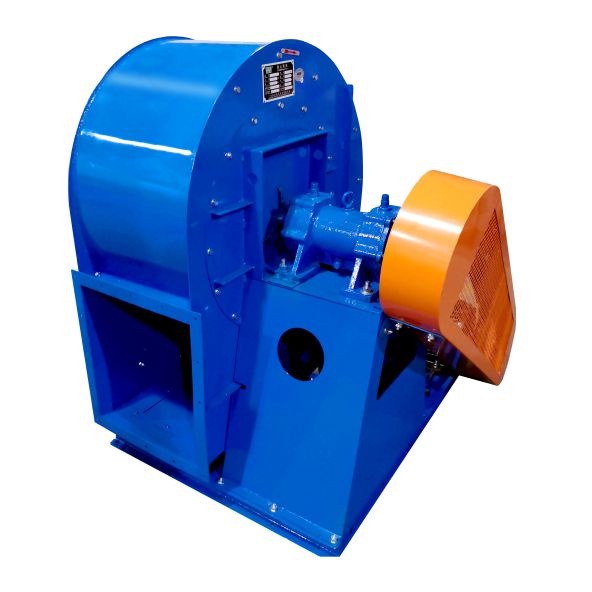

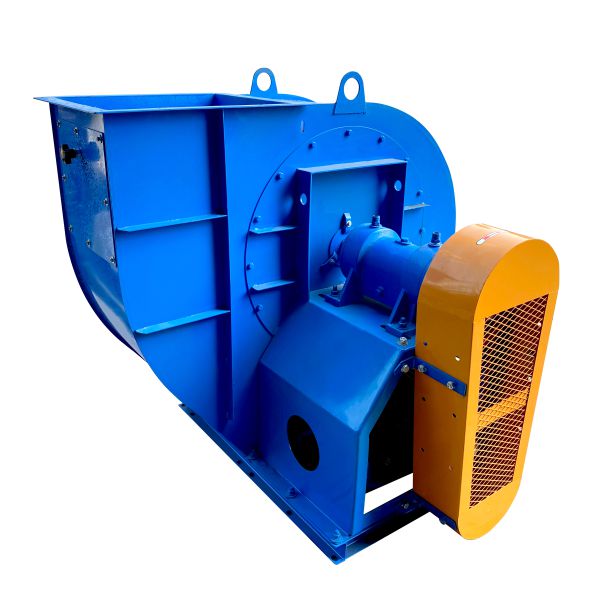

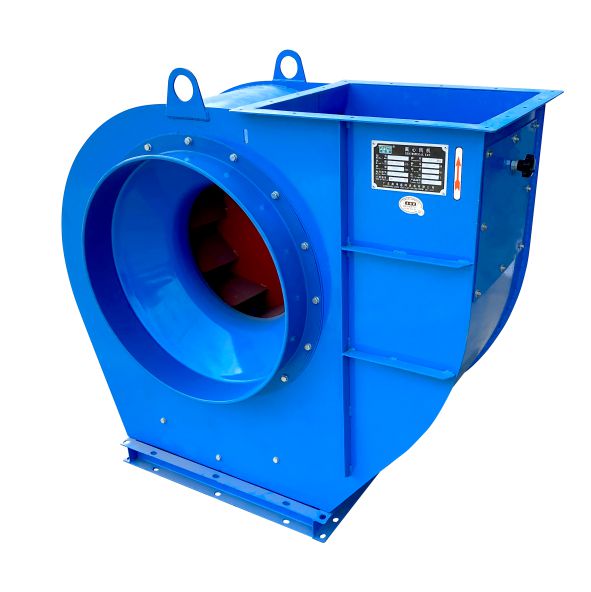

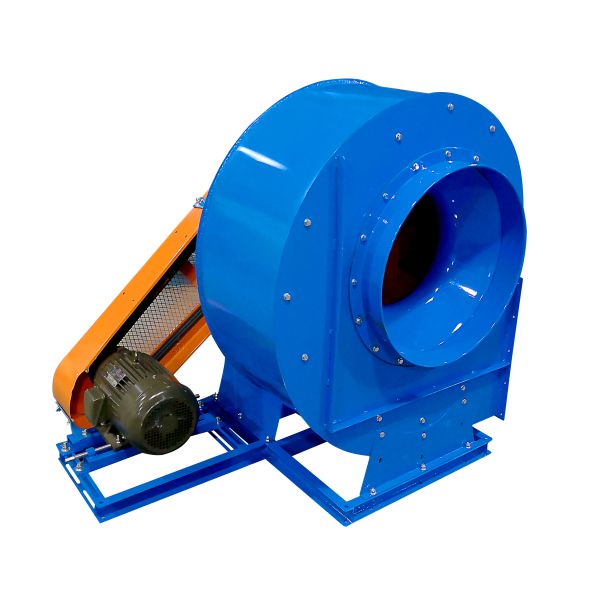

屬中壓大流量離心通風機，葉輪由后傾葉片，錐弧形前盤的平板型后盤組成；效率高、噪聲低、堅固耐用
可用于一般工廠及各類賓館、酒店集中空調系統氣體輸送、廚房排氣以及地下室，影劇院、會議室、體育館等大型建筑物的通風換氣、降溫除塵等
型號：6C-12C 一共5種
Medium pressure centrifugal fan with large air volume ,the impeller is consist of backward blades ,cone curved front plate and flat rear plate high efficiency ,low noise ,strong and durable
Used for air conveying of air conditioning system in the factory ,hotels and restaurant ,air exhausting in large-scale building,such as kitchen ,ventilation .cooling and dust extracting in basement ,cinema ,meeting room ,gym ,etc
Model no.:6C-12C,total 5 models.
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規格 Specifications (90度長寬高cm) |
規格
Specifications |
殼葉重量
Shell weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
c式殼葉單價 Unit price of type C shell leaf （RMB） |
風輪價 Wind turbine price （RMB） |
|
6C |
15 |
2240 |
10314-20628 |
2734-1733 |
1650x11050x1140 |
1370x1120x1400 |
234 |
23 |
|
|
6200 |
800 |
|
11 |
2000 |
9206-18418 |
2176-1380 |
Φ600 |
480x420 |
|||||||
|
7.5 |
1800 |
8288-16576 |
1760-1116 |
|||||||||
|
5.5 |
1600 |
7367-14734 |
1389-881 |
|
|
|||||||
|
3 |
1250 |
5756-14734 |
846-537 |
Φ600 |
416x476 |
5800 |
600 |
|||||
|
2.2 |
1000 |
4605-9209 |
541-344 |
|
|
|||||||
|
1.1 |
800 |
3684-7367 |
346-220 |
|
|
|||||||
|
7C |
18.5 |
1800 |
13161-26322 |
2395-1519 |
1890x1210x1180 |
1150x1200x1470 |
345 |
36 |
Φ700 |
610x490 |
9000 |
960 |
|
15 |
1600 |
11698-23397 |
1890-1199 |
|||||||||
|
7.5 |
1250 |
9140-18279 |
1151-731 |
8600 |
900 |
|||||||
|
5.5 |
1120 |
8189-16378 |
924-586 |
|||||||||
|
4 |
1000 |
7312-14623 |
736-468 |
|||||||||
|
8C |
37 |
1800 |
28105-36427 |
2920-2302 |
1390x2000x1470 |
1650x1400x1680 |
400 |
45 |
Φ800 |
540x560 |
11400 |
2200 |
|
30 |
1800 |
19646-25240 |
3143-3032 |
|||||||||
|
22 |
1600 |
17463-22435 |
2478-2390 |
|||||||||
|
11 |
1250 |
13643-22435 |
1507-1106 |
10800 |
2000 |
|||||||
|
7.5 |
1120 |
12224-15705 |
1209-1166 |
|||||||||
|
5.5 |
1000 |
10914-14022 |
963-929 |
|||||||||
|
3 |
800 |
8732-16190 |
615-45 |
|||||||||
|
2.2 |
710 |
7749-11085 |
485-450 |
|||||||||
|
10C |
30 |
1120 |
31237-43722 |
1902-1405 |
2320x1750x1720 |
2200x1750x2120 |
760 |
140 |
Φ1000 |
800x720 |
17600 |
3000 |
|
18.5 |
1000 |
27890-39038 |
1514-1199 |
|||||||||
|
15 |
900 |
25101-35134 |
1225-970 |
|||||||||
|
11 |
800 |
22312-31230 |
967-766 |
15600 |
3200 |
|||||||
|
7.5 |
710 |
19802-27717 |
7461-603 |
|||||||||
|
5.5 |
630 |
17571-24594 |
599-476 |
|||||||||
|
4 |
560 |
15618-21861 |
473-375 |
|||||||||
|
3 |
500 |
13945-19519 |
377-299 |
|||||||||
|
12C |
55 |
1000 |
63952-67457 |
1859-1729 |
2816x2280x2600 |
2816x2300x2450 |
|
|
Φ1200 |
960x840 |
26000 |
4400 |
|
37 |
900 |
43375-60712 |
1767-1399 |
|||||||||
|
30 |
800 |
38556-53966 |
1395-1104 |
|||||||||
|
18.5 |
710 |
34218-47895 |
1097-869 |
24000 |
4200 |
|||||||
|
15 |
630 |
30362-42498 |
863-684 |
|||||||||
|
11 |
560 |
31774-37776 |
646-540 |
|||||||||
|
7.5 |
500 |
24098-33728 |
543-430 |
|||||||||
|
5.5 |
450 |
25532-30356 |
417-348 |
|||||||||
|
4 |
450 |
21687-23610 |
440-434 |
|||||||||
|
3 |
450 |
19278-26983 |
347-275 |
2)6C~8C加清潔門60元；10C~12C加清潔門80元。
