產品展示
PRODUCT

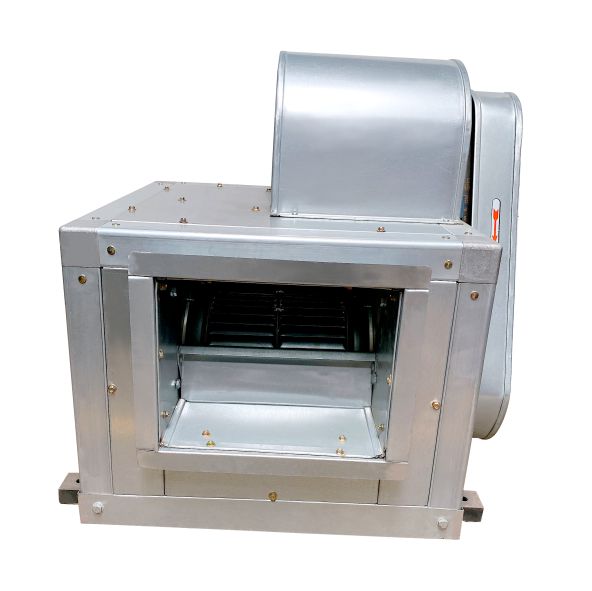

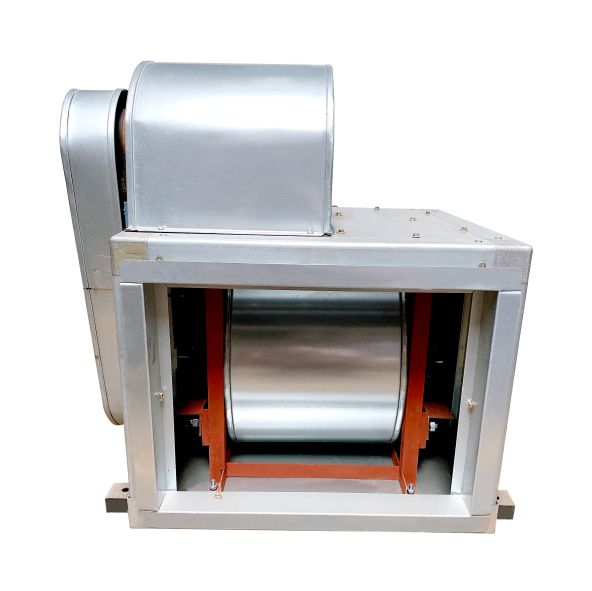

選用前向多翼式離心風機。
風量大、全壓高、噪音低、振動小。
安裝維修方便、外表美觀。
適用于賓館、體育館、學校、酒樓、影劇院、禮堂、高級民用住宅和工廠企業等消防及通風的場合，還可以配套中央空調系統個環保凈化系統。

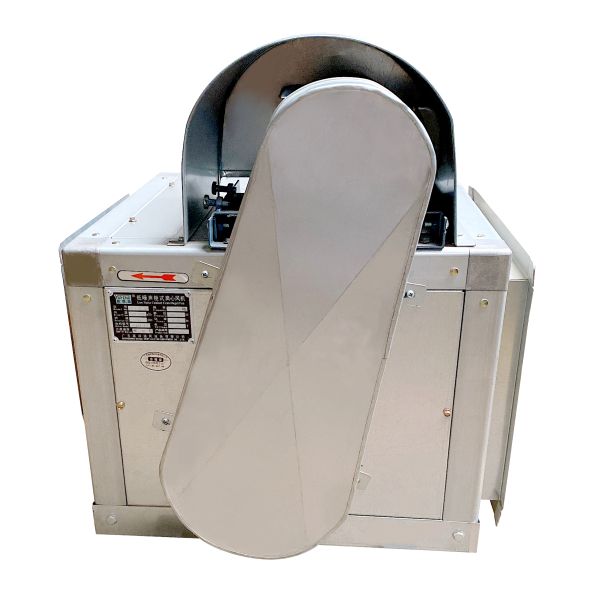

電機外置式為消防通風專用，電機內式為通風用，作消防用時煙氣溫度在280°C的情況下連續運作30分鐘以上。
輸送介質為空氣及其他不自燃自爆、對人無害的、對銅鐵材料無腐蝕氣體。
型號：9#、10#、12#、15#、18#、20#、22#、25#、28#、30#、33#、36#，共12種。
Consist of forward curved multi-blade impeller
Large air volume ,high pressure ,low noise ,small vibration
Easy installation ,beautiful appearance
Suitable to use in control and ventilation place,such as hotel ,gym,school,hotel,cinema,hall,residences,industrial and mining enterprise. Also can be matching equipment with centralair conditioning system or environmental protection purification system
Motor installed externally is fire-control and ventilation dual-purpose ,motorinstalled internally is for ventilation ,the fan can work continually for more than30 minutes when fire happens ,and even the temperature of smoke reach 280°C
The transmitted medium is air,other non hypergolic air,harmless air ,and non erosion air to the steel materials
Model no.: 9#、10#、12#、15#、18#、20#、22#、25#、28#、30#、33#、36# ,total 12 models
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
噪聲 Noise dB （A） |
吸風口 Air intake （mm） |
出風口徑 Air outlet diameter （mm） |
規格（180°-0°） |
規格（270°-90°） |
葉輪重量 Wind wheel Weight (Kg) |
普通型 Common type （RMB） |
普通型加棉型 Common plus cotton （RMB） |
豪華噴漆型整體 Deluxe spray painted overall （RMB） |
|
9# |
0.55 |
1000 |
1800-3300 |
250-160 |
≤62 |
490X360 |
330X260 |
500X600X530 |
540X600X490 |
49 |
2900 |
3240 |
3100 |
|
0.75 |
1100 |
2200-3700 |
280-210 |
≤62 |
3040 |
3320 |
3200 |
||||||
|
1.1 |
1200 |
2600-4300 |
320-250 |
≤62 |
3080 |
3360 |
3280 |
||||||
|
10# |
0.75 |
900 |
2800-4600 |
420-310 |
≤65 |
420X510 |
350X280 |
530X630X590 |
650X630X550 |
55 |
3160 |
3460 |
3320 |
|
1.1 |
1000 |
3000-5000 |
480-380 |
≤65 |
3208 |
3520 |
3360 |
||||||
|
1.5 |
1100 |
3200-5600 |
570-450 |
≤65 |
3208 |
3580 |
3440 |
||||||
|
12# |
1.1 |
900 |
3600-6200 |
520-420 |
≤68 |
650X530 |
370X270 |
630X760X690 |
800X760X650 |
70 |
3570 |
3920 |
3740 |
|
1.5 |
1000 |
4200-7000 |
620-740 |
≤68 |
3640 |
3980 |
3800 |
||||||
|
2.2 |
1100 |
5200-8100 |
700-500 |
≤68 |
3920 |
4260 |
4100 |
||||||
|
15# |
1.5 |
720 |
5600-8500 |
500-400 |
≤70 |
690X630 |
450X330 |
700X800X805 |
850X800X705 |
110 |
3880 |
4252 |
4060 |
|
2.2 |
850 |
6800-9300 |
600-480 |
≤70 |
4160 |
4532 |
4360 |
||||||
|
3 |
900 |
7500-12000 |
680-550 |
≤70 |
4320 |
4690 |
4500 |
||||||
|
18# |
2.2 |
600 |
7733-13007 |
284-176 |
≤71 |
870X770 |
560X480 |
900X1000X965 |
1030X1000X835 |
130 |
4740 |
5180 |
4960 |
|
3 |
760 |
8200-13000 |
470-390 |
≤71 |
4900 |
5340 |
5120 |
||||||
|
4 |
800 |
9600-15000 |
540-450 |
≤71 |
5120 |
5560 |
5340 |
||||||
|
20# |
3 |
560 |
9196-15469 |
290-200 |
≤72 |
870X770 |
560X480 |
900X1000X965 |
1030X1000X835 |
130 |
6600 |
7232 |
6920 |
|
4 |
720 |
12000-18000 |
470-350 |
≤72 |
6806 |
7460 |
7120 |
||||||
|
5.5 |
760 |
13000-19000 |
650-460 |
≤72 |
7520 |
8180 |
7860 |
||||||
|
7.5 |
800 |
14000-21000 |
70-550 |
≤73 |
7800 |
8460 |
8120 |
||||||
|
22# |
4 |
600 |
14026-23590 |
422-273 |
≤73 |
990X880 |
610X540 |
1000X1100X1070 |
1150X1100X930 |
195 |
7080 |
7760 |
7420 |
|
5.5 |
650 |
15000-22000 |
630-460 |
≤73 |
7800 |
8480 |
8140 |
||||||
|
7.5 |
720 |
17000-25000 |
680-520 |
≤75 |
8080 |
8760 |
8420 |
||||||
|
11 |
800 |
19000-28000 |
780-570 |
≤75 |
9240 |
9900 |
9560 |
||||||
|
25# |
5.5 |
520 |
16896-28416 |
373-219 |
≤75 |
990X880 |
610X540 |
1000X1100X1070 |
1150X1100X930 |
195 |
10120 |
11080 |
10600 |
|
7.5 |
650 |
20000-30000 |
620-470 |
≤75 |
10400 |
11360 |
10800 |
||||||
|
11 |
720 |
21000-34000 |
690-520 |
≤75 |
11560 |
12500 |
12020 |
||||||
|
15 |
760 |
23000-37000 |
720-550 |
≤77 |
12140 |
13100 |
12620 |
||||||
|
28# |
7.5 |
500 |
21224-35696 |
438-297 |
≤77 |
1040X970 |
660X610 |
1040X1150X1140 |
1200X1150X980 |
245 |
12320 |
13500 |
13120 |
|
11 |
600 |
24000-40000 |
580-460 |
≤77 |
13480 |
14660 |
14060 |
||||||
|
15 |
650 |
26000-43000 |
660-520 |
≤77 |
14060 |
15260 |
14660 |
||||||
|
18.5 |
720 |
29000-46000 |
710-560 |
≤80 |
15320 |
16520 |
15920 |
||||||
|
30# |
11 |
520 |
27958-47022 |
551-341 |
≤80 |
1040X970 |
660X610 |
1040X1150X1140 |
1200X1150X980 |
245 |
15500 |
16920 |
16200 |
|
15 |
580 |
31000-52000 |
600-450 |
≤80 |
16080 |
17520 |
16800 |
||||||
|
18.5 |
600 |
33000-55000 |
680-510 |
≤80 |
17340 |
18760 |
18060 |
||||||
|
22 |
650 |
36000-60000 |
750-590 |
≤82 |
17860 |
19280 |
18560 |
||||||
|
33# |
15 |
450 |
31320-51530 |
545-367 |
≤82 |
1240X1080 |
750X650 |
1200X1350X1280 |
1300X1350X1140 |
345 |
19400 |
21240 |
21200 |
|
18.5 |
500 |
38000-61000 |
630-500 |
≤82 |
20660 |
22500 |
21600 |
||||||
|
22 |
560 |
42000-64000 |
700-550 |
≤82 |
21200 |
23000 |
22100 |
||||||
|
30 |
600 |
44000-67000 |
780-600 |
≤85 |
23600 |
25420 |
24500 |
